Tropical Hardwood trellis TRADITION
Decorative and durable trellises to embellish your garden
- Robust
- Quick and easy to install
- Mix with blackout fence
- Made of rot-proof exotic wood
- Naturally rot-proof
- Several patterns: openwork or blackout
- 2 widths available: 180 cm and 90 cm
- Jointed assembly : mortise and tenon joints
TRADITION exotic wood fencing concept
An occult or openwork fence
Choose a filler board
Blackout or openwork, square or diagonal mesh...
Choose a trellis model
Chambord, Chantilly, Chinon, Louvre, Villandry, 90x180 cm ; 180x180 cm
Create your fence
with our myfenceplanner.com configurator
TRADITION fencing combinations
to be created with our myfenceplanner.com configurator
-
Barok interlocking boards 180 cm with Chinon trellis 90 cm -
Barok interlocking boards 180 cm with Chambord trellis 90 cm -
Classik interlocking boards 180 cm with Louvre trellis 90 cm -
Classik interlocking boards 180 cm with Chantilly trellis 90cm -
-
Characteristics KERUING wood
Compose your fence and trellis with Myfenceplanner.com
Go to our 3D configurator myfenceplanner.com to create your fence project and find out your budget immediately.
Step 1: Determine the length of your project and the number of corners.
Step 2: Choose a panel from our collections and start drawing
Step 3: Your budget is calculated automatically
High-end Trellis in Exotic woods with FSC certification
FelixWood trellises consist of thin slats or strips that are joined together and stiffened on an FSC-certified Keruing frame.
The trellises are all of the same height of 180 cm and come in 2 widths: 180 and 90 cm.
The Louvre and Jalousie trellises are opaque with their slats oriented at 45° (openwork).
These garden screens play both an aesthetic and decorative role. Above all, they can be used to delineate a garden and preserve its privacy away from the neighbours' view.
They can also be combined with all the panels of the TRADITION collection. They allow climbing plants to transform your fence into a green fence.
Doors with their hardware are offered as an option for each model.
CHINON trellis
The CHINON trellis model offers decorative blackout perforated panels that allow light to pass through. Compatible with the panels of the TRADITION collection.
Available sizes: 90x180 cm, 180x180 cm
- Lath cross-section: 7.5x22 mm
- Lath spacing: 26 mm
- Assembly of the laths in the middle of the wood + stainless steel screws
- Wood species: Keruing : Class 2
- Naturally rot-proof

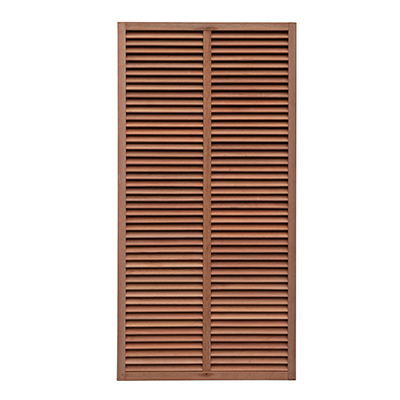

The LOUVRE trellis
The LOUVRE trellis model offers perforated blackout panels to protect against neighbours' gaze. Compatible with the whole TRADITION range, you can mix panels.
Available sizes: 90x180 cm, 180x180 cm
- Lath cross-section: 10x49mm assembled on frame
- Lath spacing: 16.3mm inclined at 45°.
- 40x40mm mortised section stiffener
- Assembly of the laths in the middle of the wood + stainless steel screws
- Keruing trellis, very durable
- Naturally rot-proof
Installation of the TRADITION range of mesh products
FelixWood trellises can be installed either directly on a wall or like FelixWood fencing between 2 posts.
The posts must be firmly anchored to the ground. There are two possibilities to choose from:
- Bury the post directly in the ground. 1/3 of the length of the post must be buried in the ground.
- Sealing stainless steel anchors in concrete to fix the post: H plate.
Distance between 2 posts: 180 cm / 90 cm
For installation of the trellis on a wall, it must be attached with dowels and a spacer of at least 5 mm between the wood and the wall support. It is important to allow free air circulation along the wall. This also helps to prevent possible tannin run-off on the wall.
Attaching trellis between posts
The trellises must be attached to the posts with 4 L-shaped brackets (stainless steel).
Make sure that there is a certain distance from the ground (minimum 5 cm), otherwise the wood will be permanently damp.
The posts can be covered with a stainless steel cover to provide better protection from the weather and to avoid cracking at the ends.
Components of the TRADITION fence
-
Trellis Chambord 180x180 cmLaths 25x25mm. Mid-wood assembly. Chamfer. -
Trellis Chambord 90x180 cmLaths 25x25mm. Mid-wood assembly. Chamfer. -
Trellis Chinon 180x180 cmLath: 7.5x22mm. Lath spacing: 26 mm. Lath assembly at mid-wood + stainless steel screws
-
Trellis Chinon 90x180 cmLath: 7.5x22mm. Lath spacing : 26 mm. Lath assembly at mid-wood + stainless steel screws. -
Chantilly trellis 180x180 cm -
Chantilly Trellis 90x180 cm -
Chantilly trellis 40x180cm -
Louvre Trellis180x180cm Laths : 10x49mm. Spacing between Laths: 16.3mm. inclined at 45°. Stiffener 40x40mm mortised Mid-wood assembly + stainless steel screws -
Louvre Trellis90x180 cm Laths : 10x49mm. Laths spacing: 16.3mm. inclined at 45°. Stiffener 40x40mm mortised Mid-wood assembly + stainless steel screws -
Villandry trellisVenetian panel with adjustable laths : 90x180 cm and 180x180 cm -
Post 90x90 mmPost in Bangkirai Section: 90x90 mm Length: 3m Grooved on all 4 sides -
Mounting bracketSet of 4 brackets : 40x40x37mm. Screws 8mm + 4 stainless steel screws 4x20mm -
Attaching plateStainless steel plate for post 90x90mm -
H-shaped plate to be sealedStainless steel base plate for post 90x90mm -
Post cover 90x90Stainless steel post cap 90x90mm
