COBRALINER drilling template

For perfect alignment and fixing of your boards

Simple and fast
All you need to know
  • Respect the 20mm recommended screwing spaces
  • Adjustable to all board widths
  • Perfect screw alignment
  • Solid and robust
  • Time saving, Easy to use
  • Sold with 4 DECKSPACER

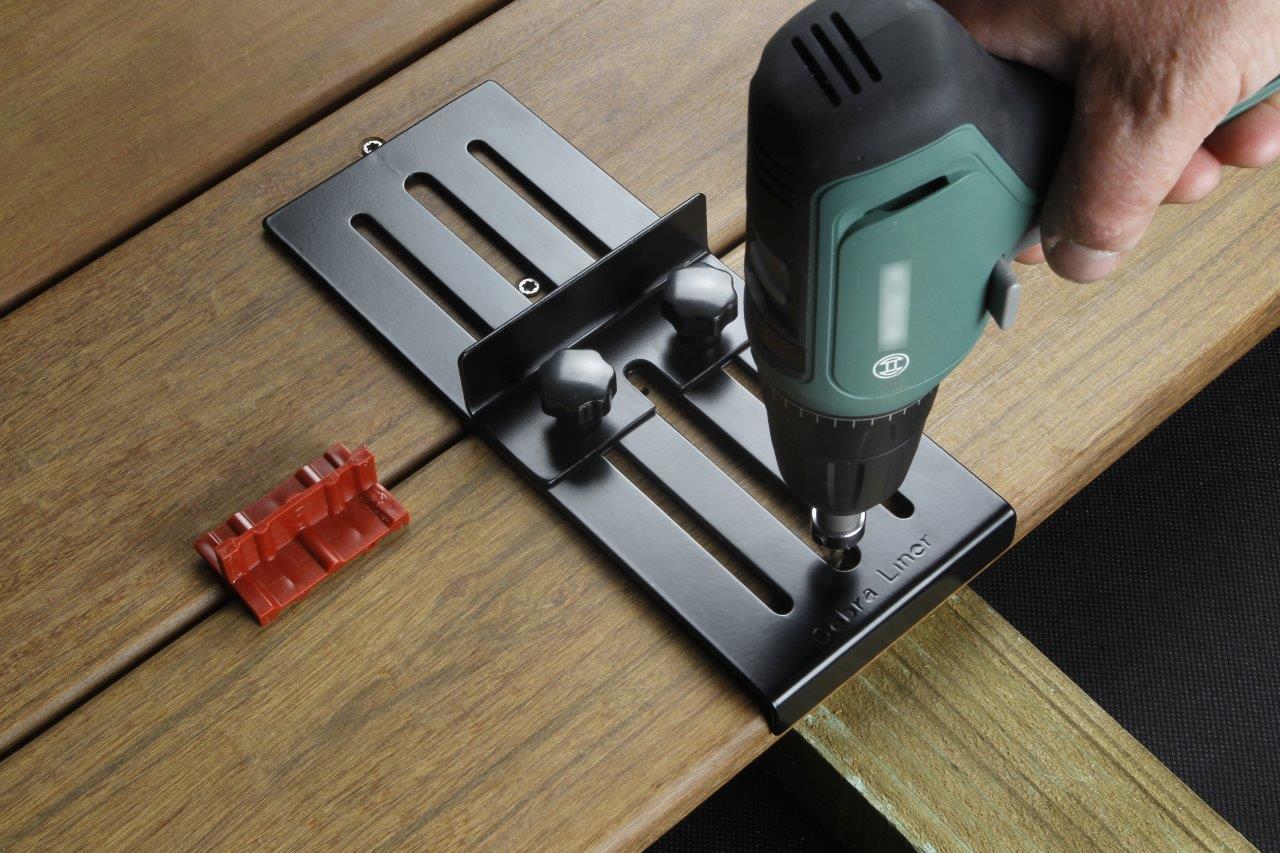

Fixing your slats with the COBRALINER drilling template

Features

Material
Steel
Template
Compatible with boards up to 190 mm thick
Adjustable through two bolts
Additional accessory
4 DECKSPACERS
Weight
0,63kg

A simple and universal drilling tool

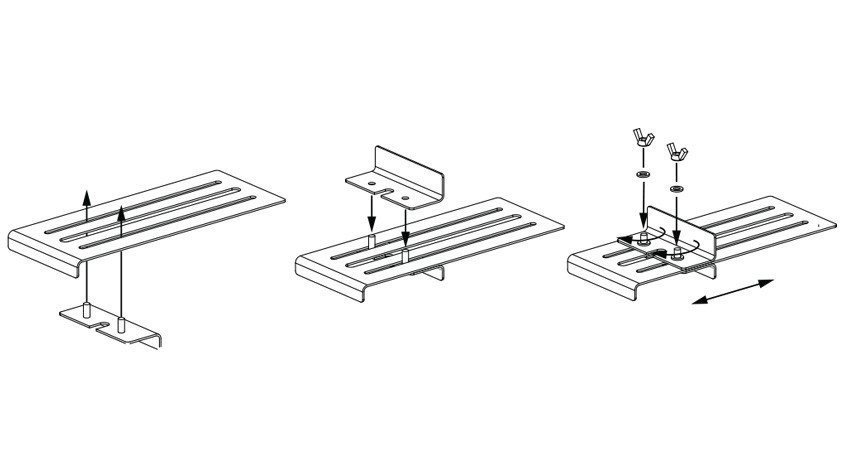

The COBRALINER metal drilling template simplifies the fixing of screws when laying the terrace decking. The sliding system of the Cobra Liner drilling template can be adapted to any board width.

With the drilling template, only two screws are needed for quick and easy fixing of your boards. The sliding system allows the installation template to be used on all decks.

Simplified fixing of your boards

Thanks to the Cobra Liner drilling template, fixing your deck boards has never been easier.

Simply adjust the template in relation to your boards at the beginning of the installation, then all you have to do is come and screw your boards to the joists. Thanks to the drilling template, each screw is placed in the right place with precision and without any error.

The COBRALINER is supplied with 4 DECKSPACER board spacers for even greater ease of use.

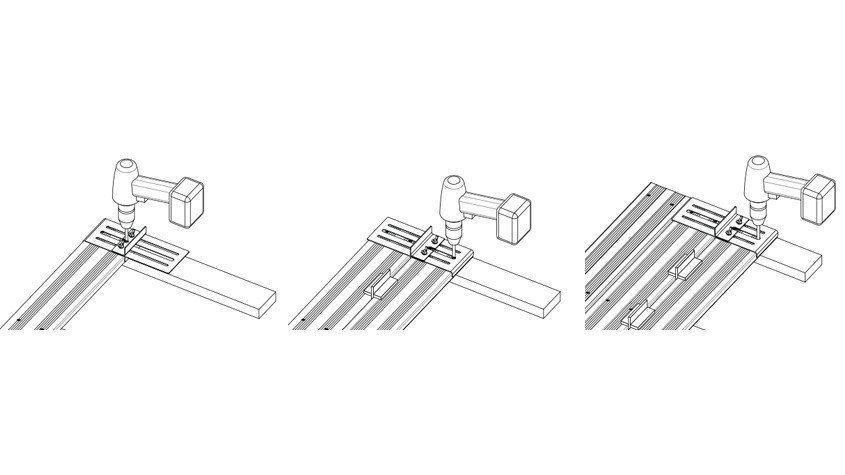

How to use Cobra Liner

The COBRALINER drilling template automatically complies with the 20mm shrinkage recommended.

By placing the template on the screws of the previous boards, you will be able to align yourself quickly and easily in order to obtain a professional-looking and high quality work.

In order to maintain perfect alignment with the COBRALINER, it must be placed on the screws of the previous boards. You will get a precise and high-quality result. This ensures that your decking has a perfect and linear alignment.

Use the COBRALINER at the end of the board to respect the 20mm shrinkage and thus prevent cracks in the boards when screwing.

And to enhance its quality, 4 board spacers are included. They keep the spaces between the boards homogeneous and guarantee a clean and aesthetic work.

Technical documents

  • CATALOGUE NIVO & COBRA.pdf
